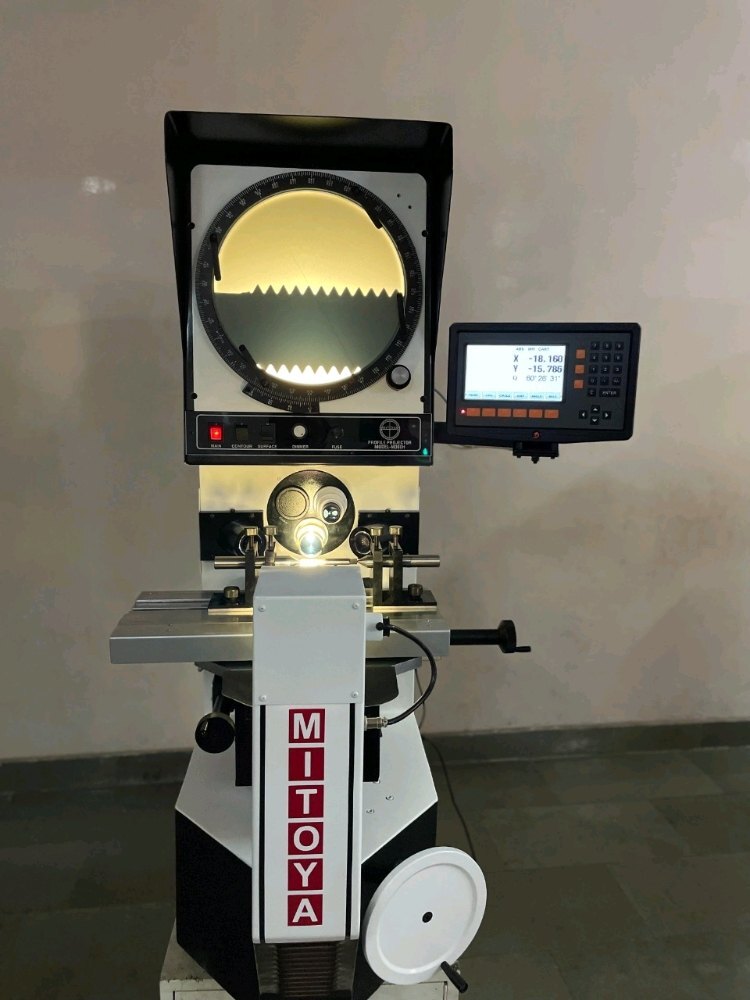

Vertical Profile Projector

500000 INR/Unit

किंमत/कोट मिळवा

उत्पादन तपशील:

व्होल्टेज AC Single Phase 230V
वर्गीकरण Normal
रंग White
अनुप्रयोग Inspection of precision parts
वजन किलोग्रॅम (किलो)
उत्पादनाचा प्रकार Profile Projector
ऑपरेट पद्धत Manual
अधिक पाहण्यासाठी क्लिक करा
तुमचे उत्पादन शेअर करा:

परत कॉल करण्याची विनंती चौकशी पाठवा

किंमत आणि प्रमाण

किमान ऑर्डरची मात्रा 10

उत्पादन तपशील

ऑपरेट पद्धत Manual
साहित्य Metal
वापर Industrial
व्होल्टेज AC Single Phase 230V
अनुप्रयोग Inspection of precision parts
रंग White
वर्गीकरण Normal
उत्पादनाचा प्रकार Profile Projector
वजन किलोग्रॅम (किलो)

व्यापार माहिती

पुरवठा क्षमता प्रति महिना
वितरण वेळ आठवडा
मुख्य देशांतर्गत बाजार
प्रमाणपत्रे NABL Traceability प्रमाणपत्र & NPL प्रमाणपत्रw

उत्पादन वर्णन

The Profile Projector from Mitoya Instruments is a precision inspection tool designed for industrial use. With a manual operating method and normal classification, this projector is perfect for inspecting precision parts with accuracy up to 5-10 microns. Made from sturdy metal in a rectangular shape, it comes in four different models (M300H, M400H, M500H, M600H) with a screen capacity ranging from 200mm to 600mm. The projector is powered by AC single-phase 230V voltage and weighs between 100-200 kilograms. Its white color adds a professional look to any industrial setting.

Brand	Mitoya Instruments
Usage/Application	Inspection of precision parts
Material	Metal
Model Name/Number	M300H, M400H, M500H, M600H.
Shape	Rectangular
Capacity	200mm to 600mm screen
Automation Type	Manual
Accuracy	5-10 Micron
Country of Origin	Made in India

FAQs of Profile Projector:

Q: What is the accuracy of the Profile Projector?

A:The accuracy of the Profile Projector is 5-10 microns.

Q: What is the operating method of the Profile Projector?

A:The Profile Projector operates manually.

Q: What is the voltage requirement of the Profile Projector?

A:The Profile Projector requires AC single-phase 230V voltage.

Q: What is the weight of the Profile Projector?

A:The weight of the Profile Projector ranges from 100-200 kilograms.

Q: What is the application of the Profile Projector?

A:The Profile Projector is used for the inspection of precision parts in an industrial setting.

Precision Inspection for Industrial Applications

This vertical profile projector is designed specifically for the industrial inspection of precision parts, ensuring that every component meets stringent quality requirements. Its robust construction and advanced optics enable accurate comparison of machine parts against engineering drawings, making it indispensable in manufacturing sectors.

Durable Construction and Easy Operation

Built with high-quality metal, this projector offers lasting performance even in demanding environments. Its manual operation method allows for straightforward usage, while the white exterior ensures a modern, clean appearance suited for professional settings.

FAQs of Vertical Profile Projector:

Q: How do I operate the vertical profile projector manually?

A: To operate the vertical profile projector, simply position the precision part on the stage, align it with the projection lens, and adjust the focus manually using the provided controls. The clear display and markings help in accurately measuring dimensions against specifications.

Q: What are the main applications of this profile projector in industrial settings?

A: This device is primarily used for the inspection and measurement of precision parts, such as gears, shafts, and machined components. It ensures parts conform to exact tolerances, which is crucial for quality assurance in manufacturing and engineering workshops.

Q: When should I use this profile projector for part inspection?

A: Use the vertical profile projector during incoming part inspections, at various stages of manufacturing, or for final quality checks before dispatch. It is ideal whenever precise dimensional analysis and shape verification are required.

Q: Where can this profile projector be sourced in India?

A: This profile projector is available through authorized distributors, importers, and suppliers across India. Ensure you purchase from a reputable source for access to genuine products and reliable after-sales support.

Q: What is the process for inspecting a component with this projector?

A: The process involves placing the component on the glass stage, projecting its magnified profile onto the screen, and comparing the image to the set standards or overlay charts. Accurate measurements can then be taken to assess compliance with specifications.

Q: What are the benefits of using a manual vertical profile projector?

A: Using a manual projector offers greater control and flexibility during inspection, enabling highly accurate measurements. Its durable metal construction and stable performance make it a cost-effective solution for routine quality checks in demanding environments.
